WESSEL PRESSURE RELIEF VALVES
Description
The pressure relief valve PRV-DBU is a direct-operated valve, which is suitable for protecting hydraulic actuators against bursting or breaking. The valve is designed as a screw-in cartridge valve that can be mounted into a G1 / 2 screw-in hole.
Characteristics
- Cartridge valve
- High pressure resistance up to 500 bar
- Seat valve - leak free
Technical specifications

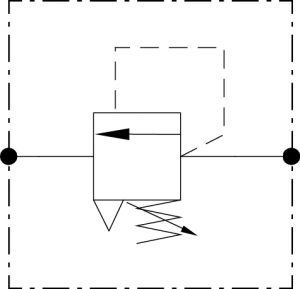

| Design | Function | Hydraulic schematic | P max, Q max | Adjustable range | Cavity |
|---|---|---|---|---|---|

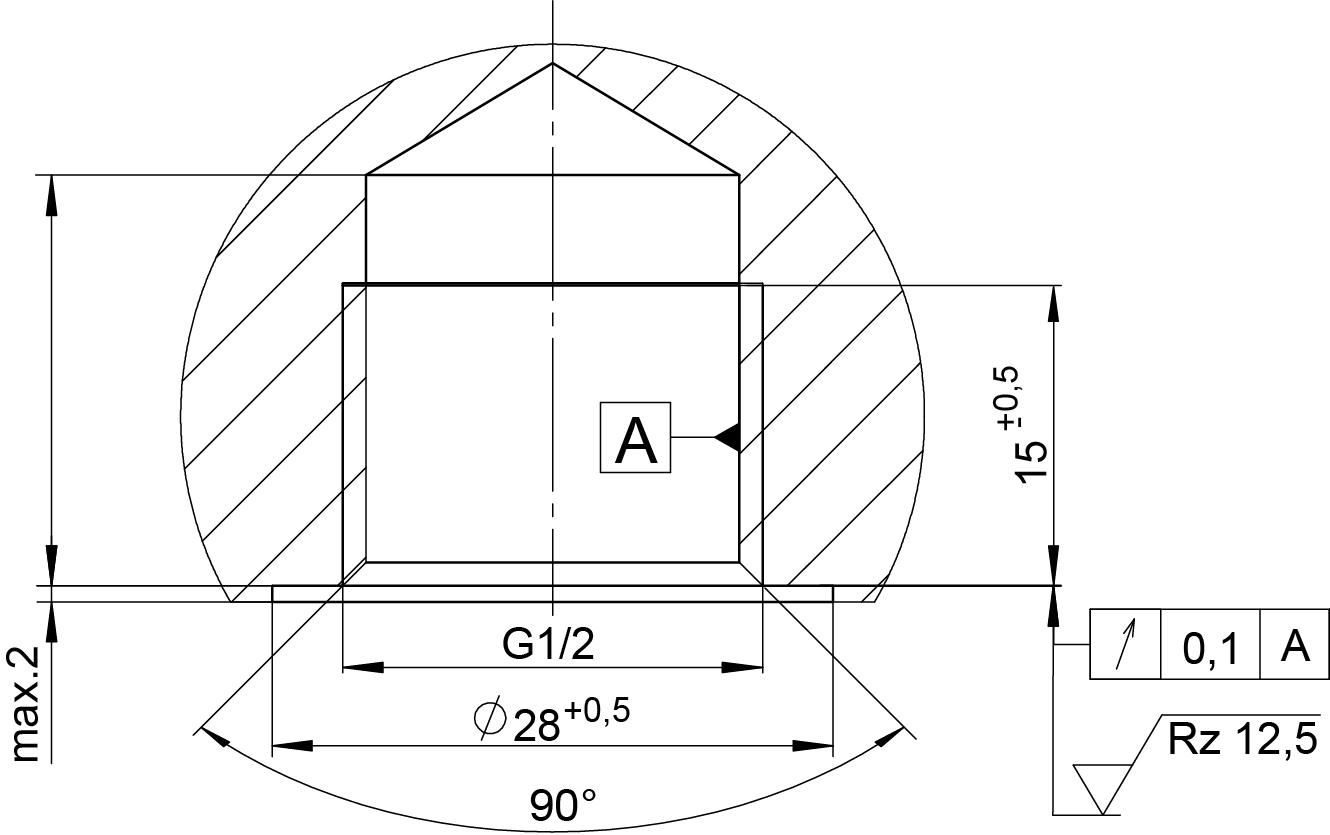

| PRV-DBU | manuell |  | 500 bar 200 l/min Hochdruck 20l/min Niederdruck | 440-500 bar 20 -21 bar | Stufenbohrung G1/2" |
Applications
- Protecting of cylinders - pressure intensification on rod side
- Return line protection - Defective or improperly connected quick couplings
