Flow Divider Valves

WESSEL flow divider valves divide the input volume flow in a specific ratio into two partial volume flows. The partial volume flows can have the same value or different, but the division ratio remains constant regardless of the difference between the inlet pressure and the load pressures.

Applications:
hydrostatic drives/systems

Design:
Flow divider 1:1

Q_max: 220 l/min | P_max: 420 bar

Port sizes:
SAE 1"

Applications:
Division of a volume flow
for any application
Design:
Cardridge and associated housing

Q_max: 40/70 l/min | P_max: 420 bar

Port sizes:
G1/2"

Applications:
Division of a volume flow
for any application

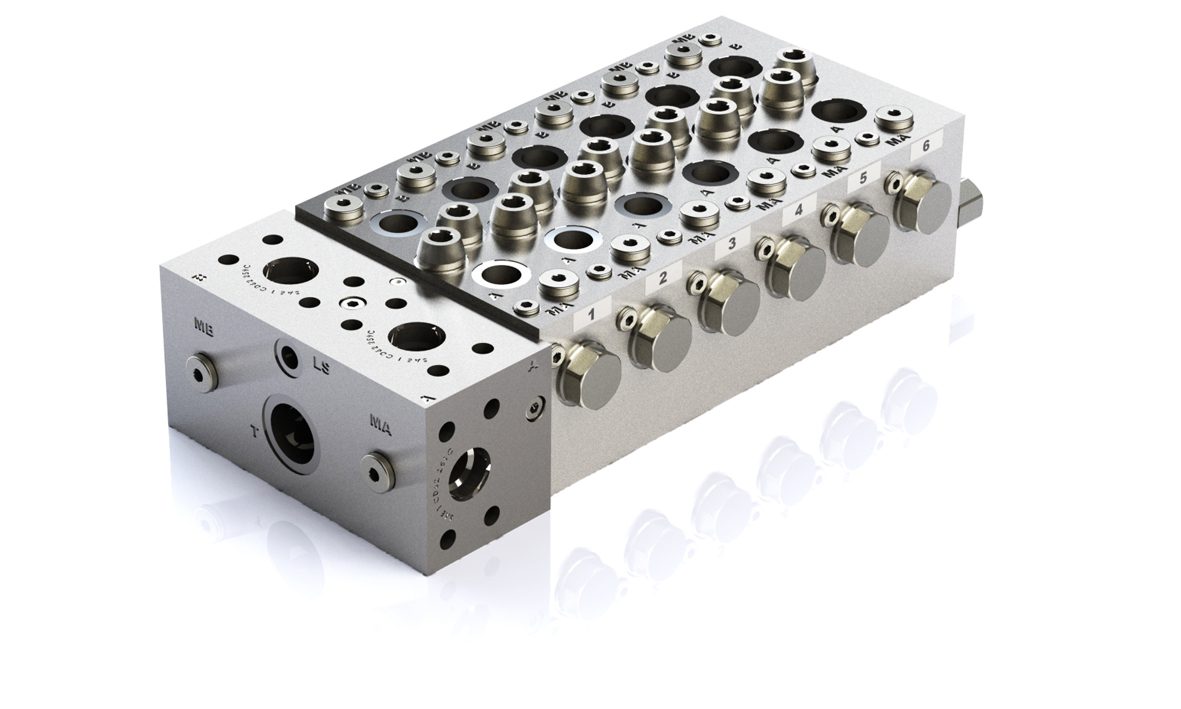

Design:
Flow divider 4-6 fold

Q_max: 360 l/min | P_max: 420 bar

Port sizes:
A,B SAE1" A(x), B(x) G1/2“
