Directional Control Valve D62-DH

Description

With a 6/2 directional control valve, the volume flow downstream of a main section can be distributed to 2 consumers as required.
Without a center position, the main consumer is controlled when the directional control valve is not switched. In the switched state, the new additional consumer is operated. The switchover takes place hydraulically.

Characteristics

  • maximum operating pressure 1&2, 3&4 = 485 bar
  • maximum operating pressure 5&6 = 460 bar
  • maximum volume flow300 l/min

Technical Data

designport sizemaximum operating pressuremaximum volume flow
D62-DH1,2,3,4,5,6 = SAE 3/4" (J518 CODE62) DIN ISO 6162
T, VSt = M14x1,5 DIN ISO 6149-1		1&2, 3&4 = 485 bar
5&6 = 460 bar
VSt = 45 bar		300 l/min

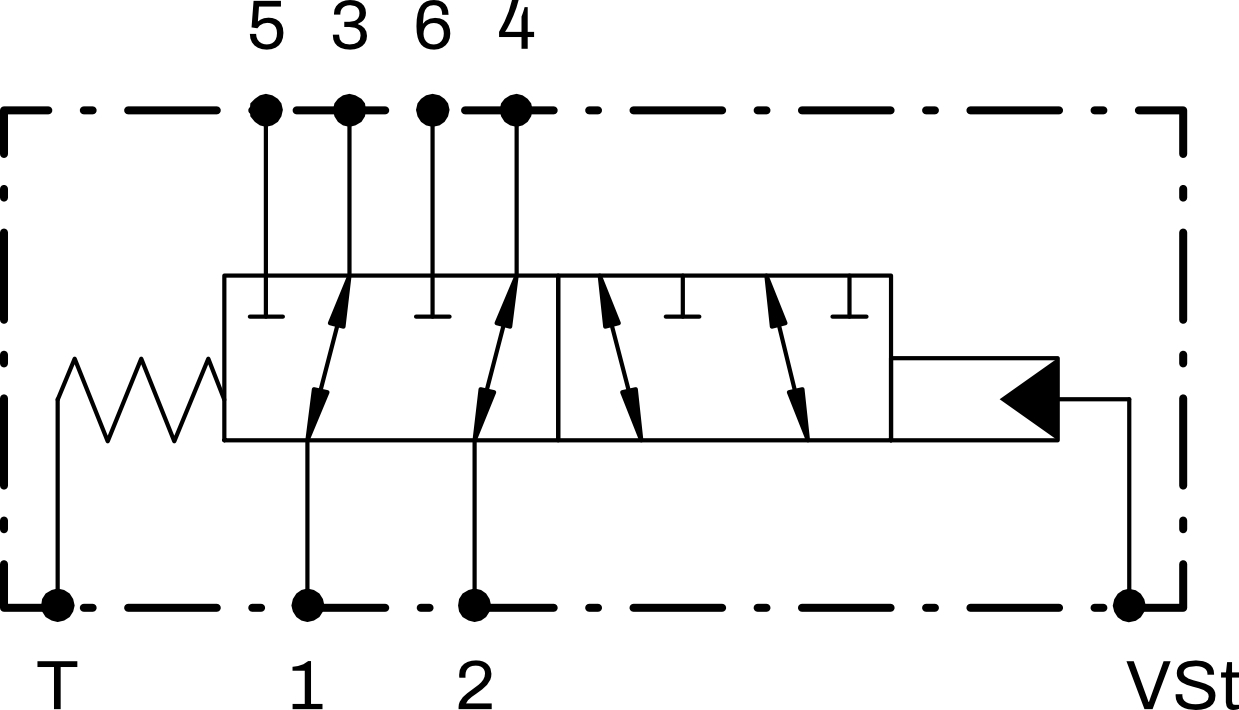

Hydraulic schematic



Downloads

Datasheet D62-DH

Anwendungen

hydraulic changeover valve

  • Excavator
  • Wheel loader
  • Material handling machine
